Lead Engineer On-Site Inspection
Head of IT Infrastructure Masba Uddin Rumi at the central server console, verifying live traffic routing, ONU connectivity, and server software readiness.
Engineering Lead
Commissioning
Institution / Client
Bangladesh Marine Academy Pabna
Department of Shipping, Ministry of Shipping
Project Timeline
October 2025 – October 2025
✓ 100% Completed on Schedule
Lead Project Engineer
Masba Uddin Rumi
Head of IT Infrastructure, Circle 21 Innovation
Contractor Authority
Circle 21 Innovation PVT LTD
Enlisted Govt Contractor (BPDB & Marine)
Authentic On-Site Photographic Evidence
Project Execution & Hardware Deployment Gallery
Photographed during the live commissioning and handover at Bangladesh Marine Academy Pabna campus. Click any photograph to view high-resolution details.

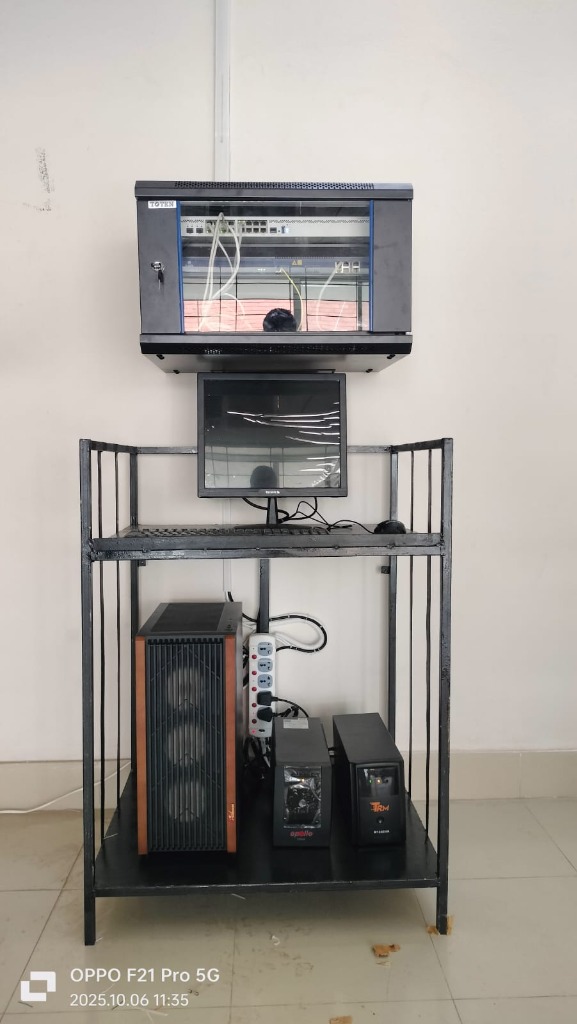

Toten Enterprise Wall Rack & Power
Industrial wall-mounted Toten 19" rack enclosure housing optical fiber patch panel, gigabit managed switch, and dual-stage Apollo & TRM power backup UPS units.
Toten 19" Enclosure
Dual UPS Redundancy

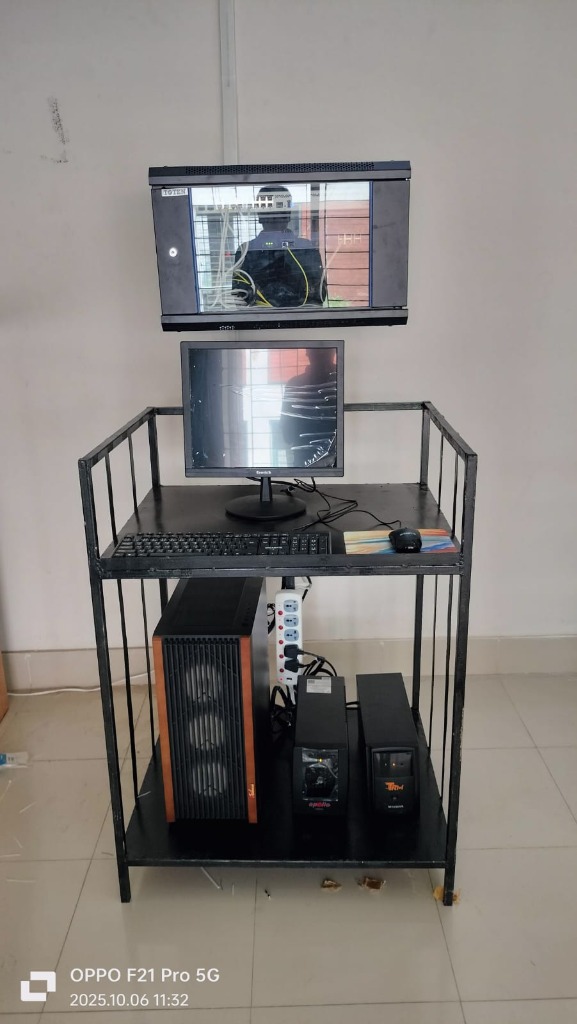

Central Terminal & Server Station
Dedicated administration workstation with wooden-accent tower server, direct terminal display, optical cabling raceways, and multi-socket power distribution strip.
Workstation Server
Terminal Console

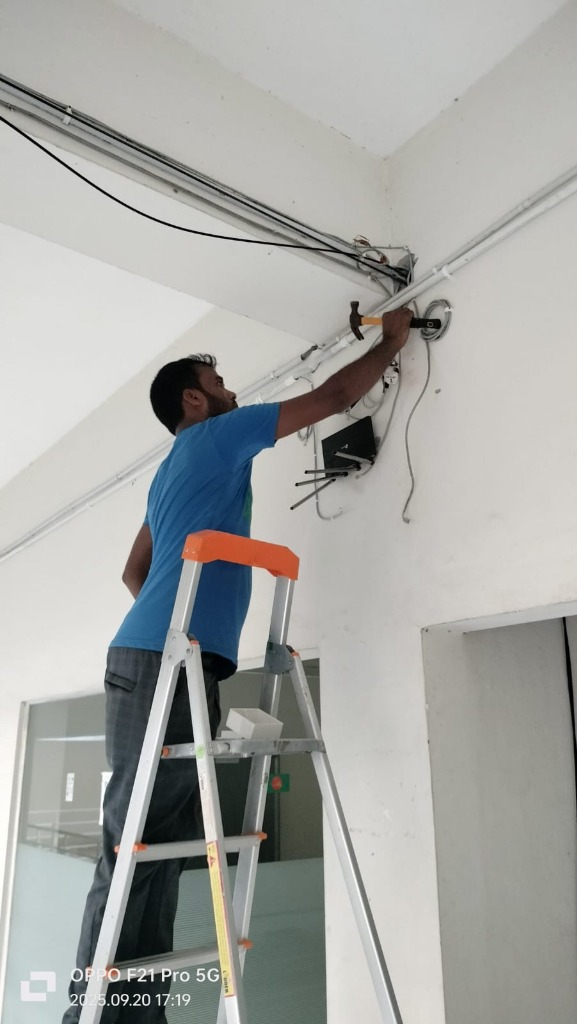

Fiber Optic Cabling & Conduit Laying
Technical field staff routing heavy-duty protective PVC conduit and armored multi-core fiber cables through building partitions, walls, and distribution points.
2 & 5 Core Fiber
Precision Splicing
Engineering Architecture & Methodology
Comprehensive Scope of Engineering Execution
Circle 21 Innovation PVT LTD provided end-to-end design, civil conduit laying, optical fusion splicing, network switching, and server software deployment across Bangladesh Marine Academy Pabna.
1. Multi-Building Optical Fiber Backbone (2-Core & 5-Core)
Designed and implemented a ruggedized optical fiber distribution loop linking administrative headquarters, faculty offices, cadet academic blocks, and navigational training facilities. Deployed armored 2-core and 5-core optical fiber cables within impact-resistant conduits to ensure zero physical signal interference, moisture immunity, and low optical loss across extended campus distances.
Armored Fiber Cabling
2-Core & 5-Core Media
Inter-Building Trunk
Zero EMI Interference
2. OLT / ONU Configuration & FTTH Terminal Termination
Engineered and configured the central Optical Line Terminal (OLT) and distributed Optical Network Units (ONU). Executed high-precision optical fiber splicing and ONU termination at key campus nodes. Implemented dynamic bandwidth allocation (DBA), granular Quality of Service (QoS), and segregated VLANs to prioritize simulator telemetry and administrative database operations.
OLT Core Setup
ONU Termination
Gigabit Throughput
VLAN Security Segregation
3. Central Server Systems & Software Package Deployment
Commissioned the central server workstation tower and deployed mission-critical academic and administrative software packages. Configured local directory services, campus internal intranet, secure firewall packet filtering, and automatic data backup routines to support daily institutional workflows, student examinations, and cadet records.
Central Workstation Server
Software Deployment
Academic Intranet
Firewall Protection
4. Dual UPS Power Redundancy & Toten Rack Enclosure
To prevent data corruption and network outages during power grid fluctuations, we engineered dual uninterruptible power supply (UPS) units—featuring an Apollo Smart UPS and a TRM High-Density unit. The system is protected inside a lockable, wall-mounted Toten 19" enterprise rack with active ventilation and transparent inspection panels.
Toten 19" Wall Rack
Apollo Smart UPS
TRM High-Density UPS
Zero Voltage Drop
Core Engineering Competencies & Equipment Matrix
| Domain / Function | Specification / Equipment | Delivery Milestone |
|---|---|---|
| Optical Fiber Infrastructure | Armored 2-core and 5-core multi-mode/single-mode outdoor trunking | ✓ Completed & Verified |
| Terminal Configuration | OLT core chassis & multi-building ONU termination endpoints | ✓ Commissioned |
| Enclosure & Structural | Toten 19" heavy-duty wall-mounted glass-front equipment rack | ✓ Fully Installed |
| Backup Power Engineering | Dual-redundant Apollo & TRM uninterruptible power systems | ✓ Load Tested |
| Server & Software Layer | Custom high-compute server tower with academic software suite | ✓ Operational Handover |
| Institutional Readiness | Delivered within strictly contracted 30-day turnaround (Oct 2025) | ★ On-Time Milestone |
Official Statutory Enlistment
Validated Institutional Partner for Bangladesh Maritime Academies
This landmark execution at Bangladesh Marine Academy Pabna exemplifies Circle 21 Innovation's official enlistment with the Department of Shipping Bangladesh, Bangladesh Marine Academy Pabna, Marine Academy Rangpur, Marine Academy Barishal, and the National Maritime Institute CTG. Our leadership combines master maritime officers and enterprise IT infrastructure architects.
